Code 804

Ultrapanel

Dual Color 60 Hard

140,000 Lux
at 1 m!

The brightest 2x1 LED panel on the market.

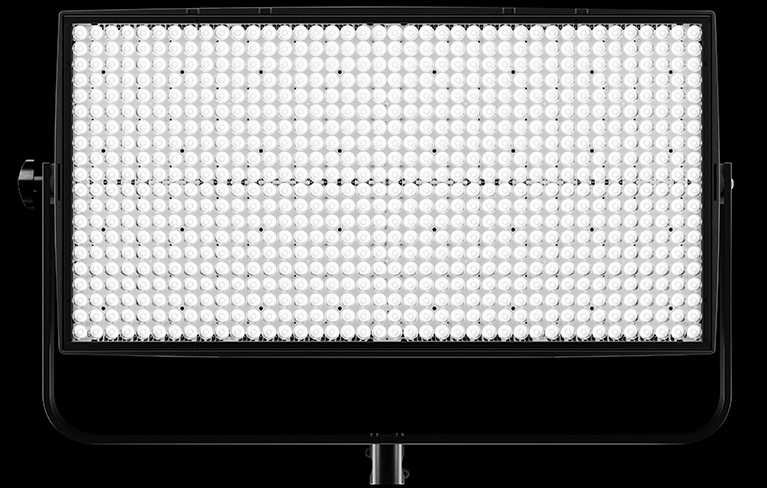

The new Ultrapanel Dual Color 60 Hard is the ultimate 2 x 1 LED panel with its 140,000 Lux at 1 m and more than 19,000 Lux at 3 m. It is a deluxe version of the Superpanel Dual Color 60 Hard with all the technical and optical features of the latter but with double the light output. Top CRI and TLCI, AC/DC operation with practical and economical 14 V and 160 Wh batteries, DMX, RDM and Bluetooth Long Range control. The Ultrapanel is a surprisingly practical light with ultra-professional performance, suitable for film sets and TV studios that need high performance lighting. The incredible light output has been achieved by using the latest generation of LEDs and the light beam angle is the same as the Superpanel Hard models (40°).

Product specifications

Dimensions (mm):

650 x 340 x 110 mm

Dimensions (inch):

25 x 13 x 4 inch

Weight (g):

9 kg

Weight (lb):

19.5 lb

Voltage AC:

90 V – 240 V

Watt consumption:

400 W

Battery:

two 14.8 V, 160 Wh, standard XLR 4 pin

Frequency (input):

50/60 Hz

Compliance:

Remote control:

Bluetooth Long Range / DMX / RDM

Intensity light dimmer

100 %

Colour Temperature

6500 K

2800 K

Colour Rendering Index

CRI

100

95

TLCI

100

96

Dimming curves modes

LINEAR

EXPONENTIAL

LOGARITHMIC

Modes

CCT

Preset

1 - 3

Special Light

Smooth dimming

DMX

8/16 bit - 1/512 Channels

Practical AC/DC operation

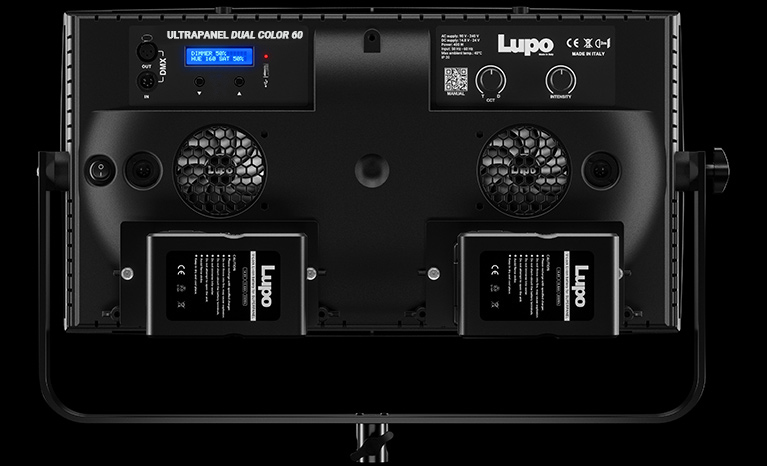

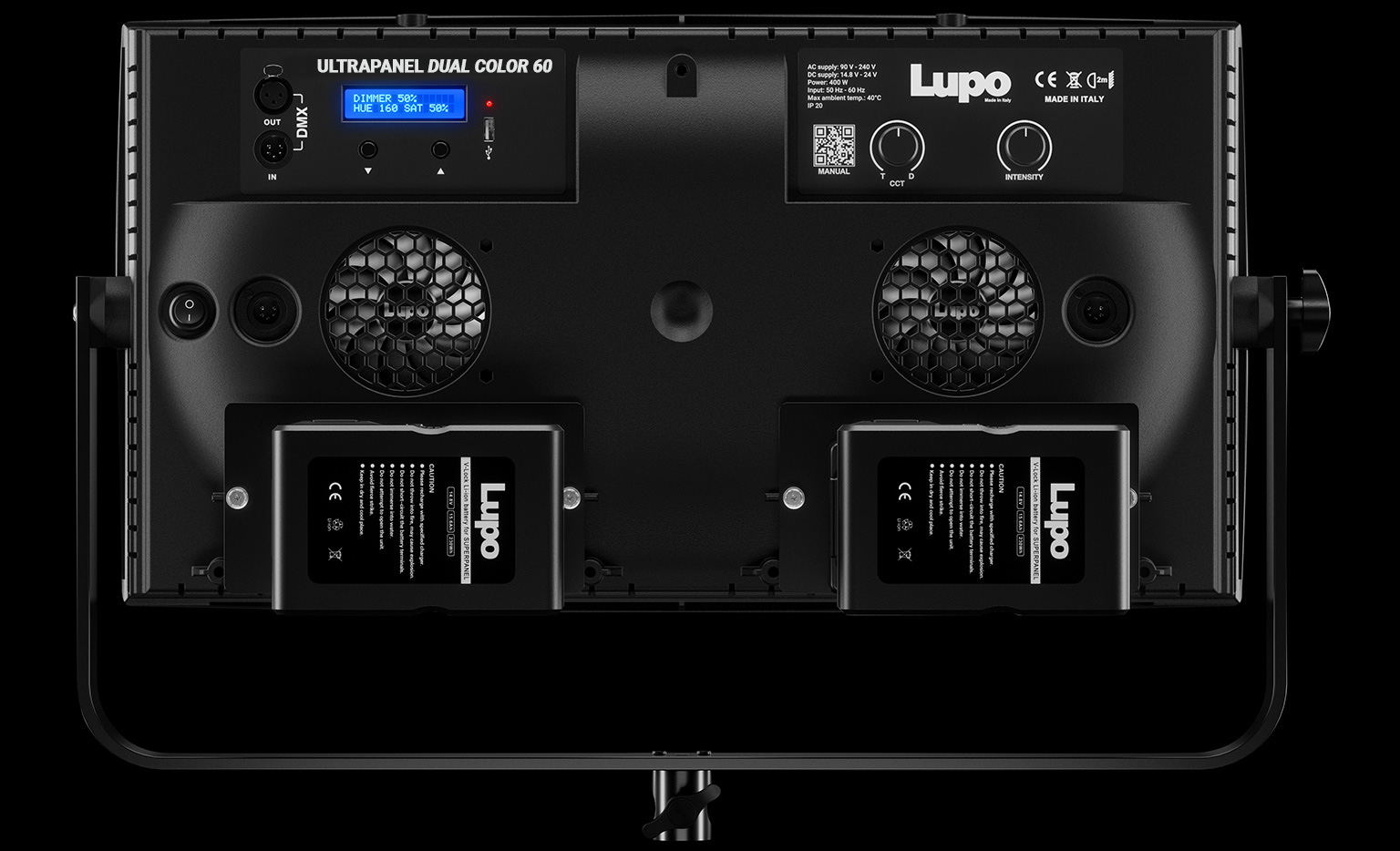

Operates on the mains and on batteries (14.8 V, 160 Wh).

The new Ultrapanel models work with inexpensive and widely available 14.8 V batteries. Lupo offers a range of battery powered accessories for all Ultrapanel models and all other LED panels and Fresnel LEDs. You will not have to worry about anything and just have to choose the battery kit that includes: two 160 Wh batteries, two v-lock plates, a dedicated charger and two d-tap cables. Of course, all of our models are compatible with the best lithium batteries on the market, but with Lupo accessories we guarantee a practical, economical and professional solution.

Bluetooth Long Range, DMX/RDM

Available in the version with pole operated yoke.

The Ultrapanel Dual Color 60 Hard is the LED panel that will make your professional shooting much easier. The technopolymer body, reinforced with carbon fibre, makes it robust and suitable for an intensive use. All Lupo lighting products are available with a pole operated yoke for use in television studios of all sizes. The operation of the Ultrapanel Hard pole operated yoke is simple, effective and reliable over time. All models with pole operated yoke are supplied with a 28 mm spigot.

Outstanding color rendering

Perfect for video shootings.

Thanks to the exclusive True Colour Technology, the Ultrapanel have a perfect colour output and do not produce casts. This fundamental and exclusive feature enables to avoid post-production interventions and allows a correct mixing with other light sources (like sun light). The Ultrapanel Dual Color 60 Hard like all latest generation Lupo LED lights features DMX, RDM and Bluetooth Long Range control for remote use.

Tuneable white

Variable colour temperature from 2800 K to 6500 K.

All models in the Ultrapanel range are designed to make life easier for professionals in the photographic and video industry, and silent operation is one of the key features of all of our lighting products. The high-frequency electronics guarantee a truly flicker-free operation even for high-speed video shooting. Put the Ultrapanel Dual Color 60 Hard to the test. You will be amazed by its performances.

Accessories

Complete
range
for every need.

All Lupo products are compatible with a wide range of accessories: batteries, v-locks, battery chargers, softboxes, carrying cases, tripods and clamps. By clicking on the link below you can see the full range of accessories for Ultrapanel Dual Color 60 Hard.

Find out all accessories
